Solar Tracking Gearboxes

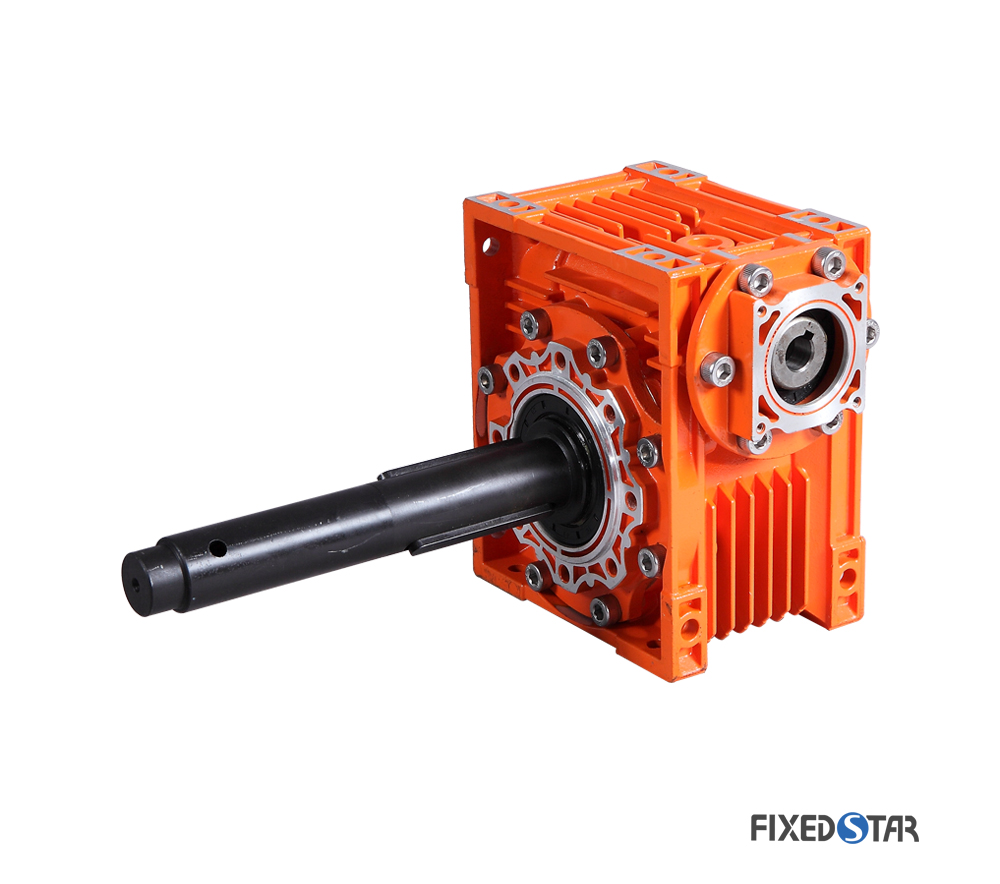

  • Fixedstar Gearboxes are available in various options for Solar Tracking purpose—single or double drives, bronze or cast iron gears, standard worm gears or dual starts worm, double enveloping worm etc. They can be widely used in many industries such as Solar Tracking, Constructions, Metals, Lifts and so many more.

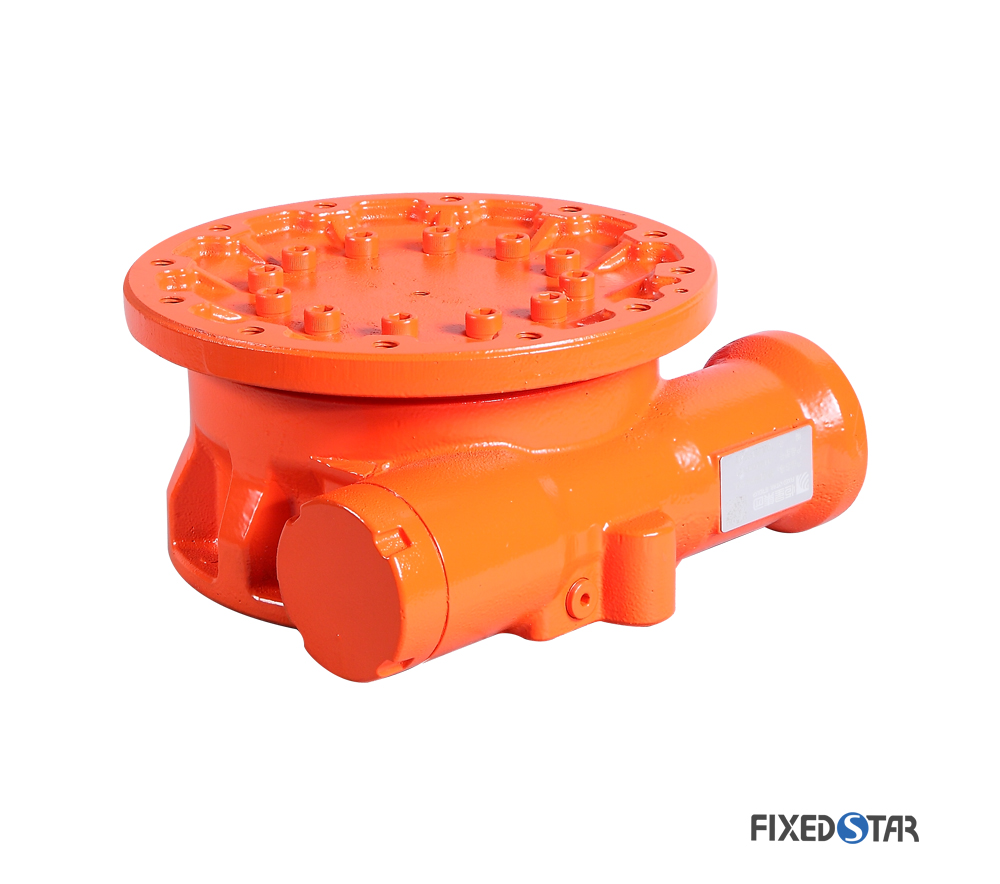

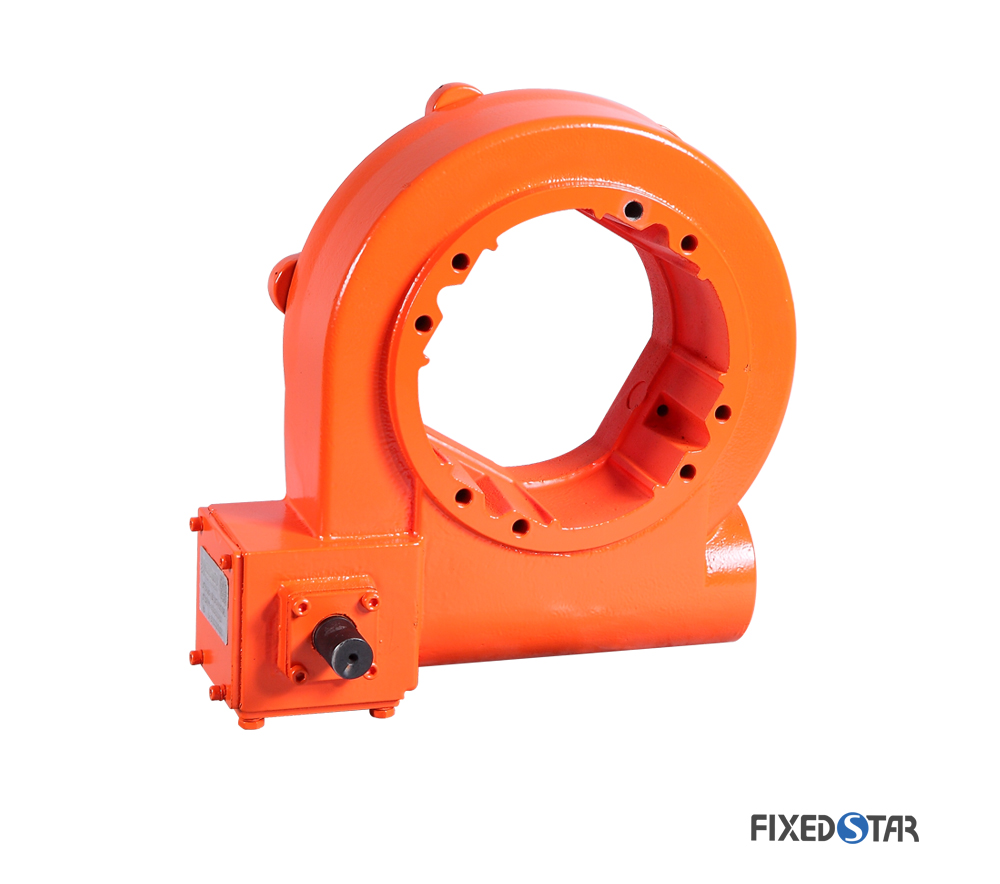

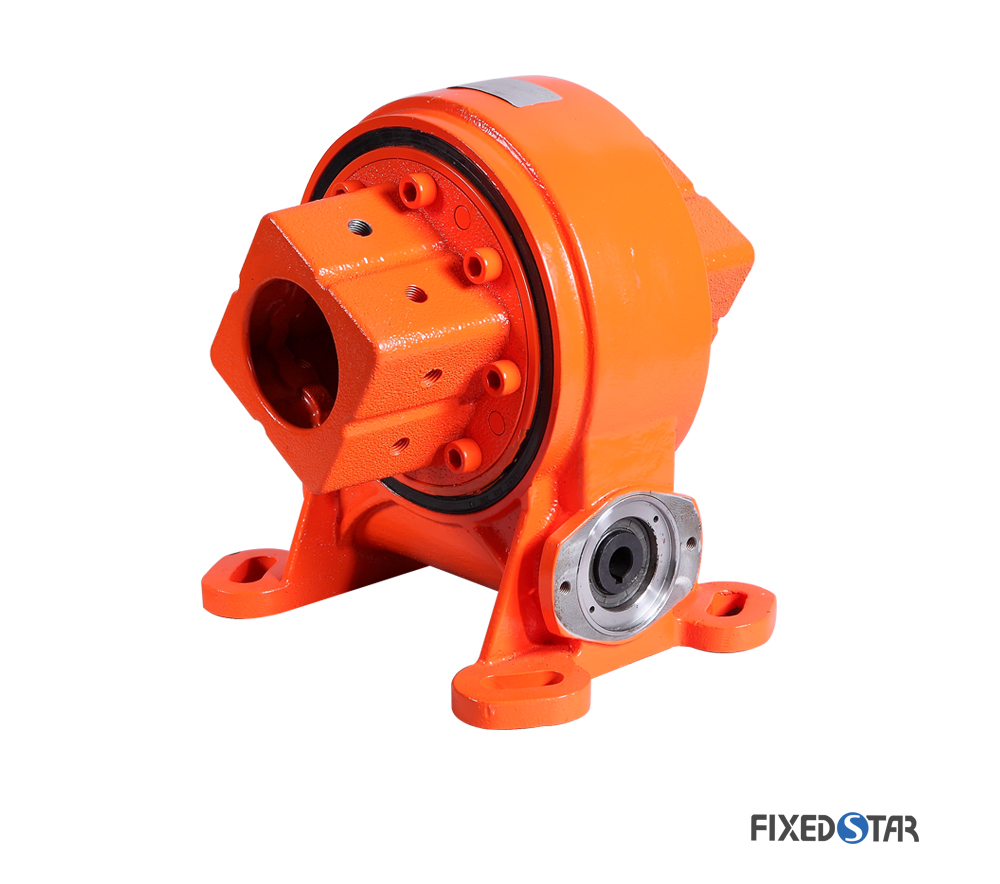

Fixedstar Started to supply slewing drives for a 10 MV CSP station since 2011 to Delingha, Qinghai China. Up to end of 2022, we have supplied more than 200,000 slewing drives to multiple Solar Power Station for both CSP and PV system.


Housing Cast Iron Grade QT550-600 or ADC12 Aluminum
Wheel Cast Iron Grade QT550-600 or Bronze
Worm Shaft 20CrMnTi or 40CrMo
Ambient Temperature -30- 80°C
IP Class IP 65
Efficiency 35%-58% depending on Ratios
Tracking Precision 0.17° to 0.05°
Rated Output Speed <0.1RPM
