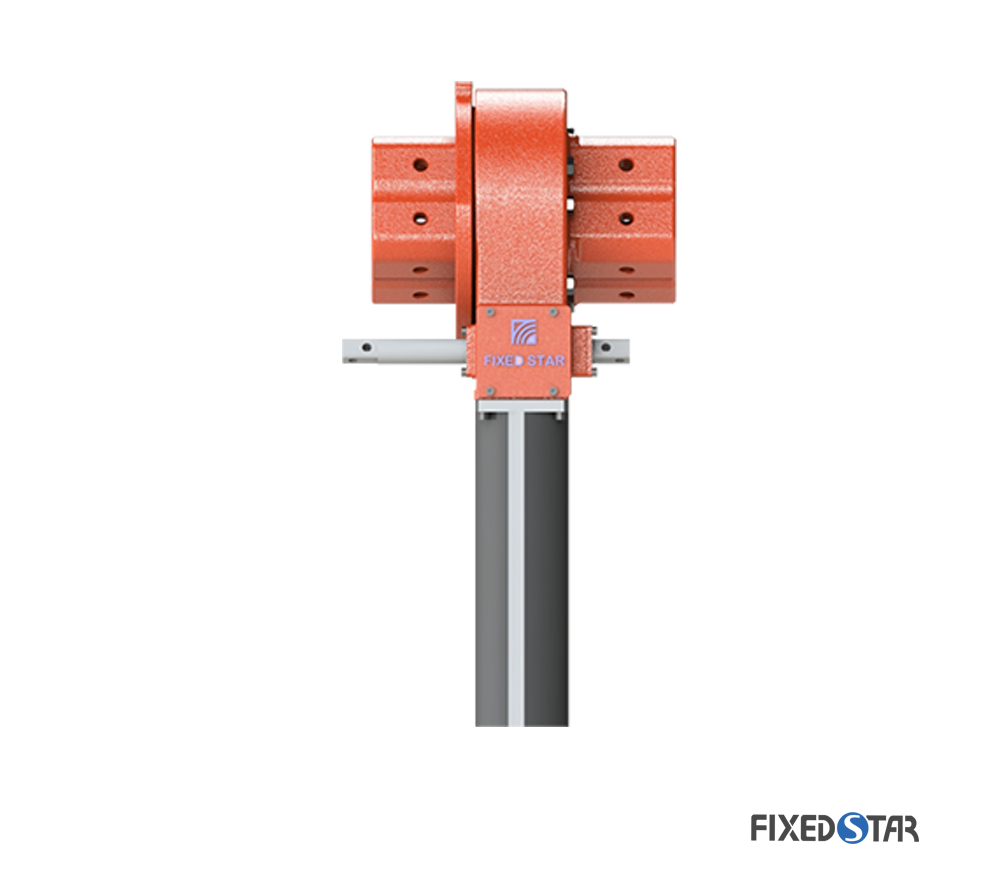

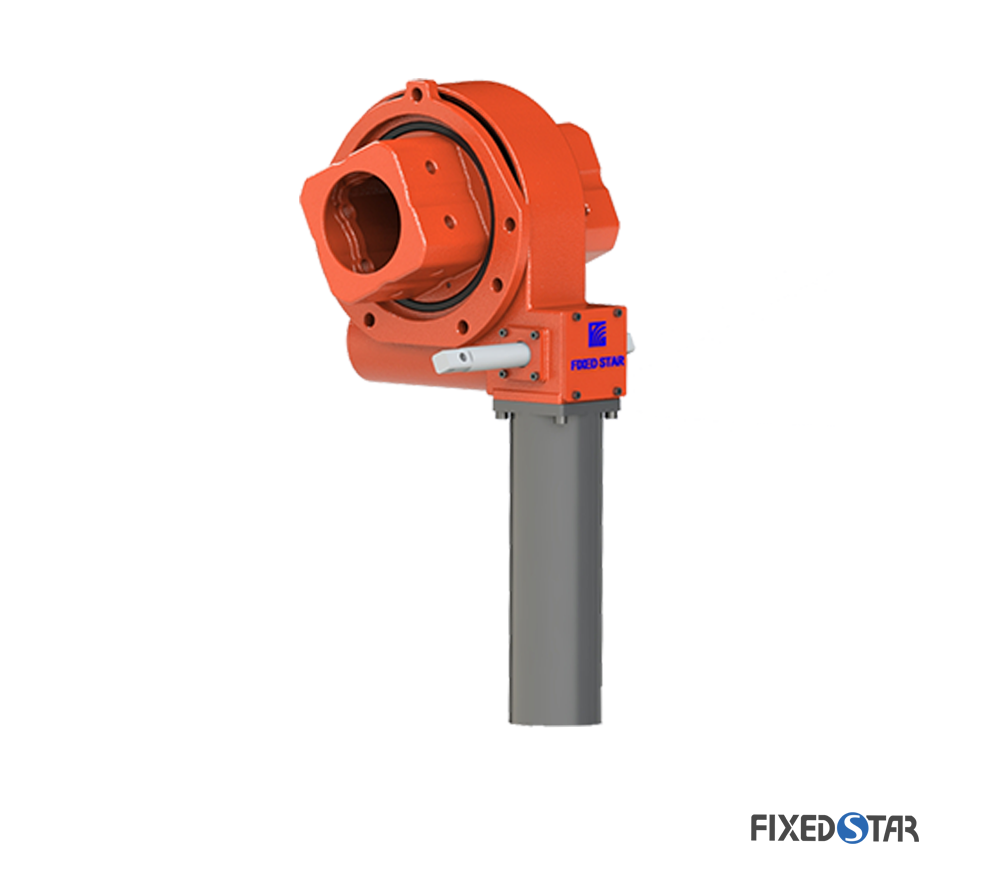

Mostly used in Solar PV Station with Single Axis Tracking System, FD08M is good for single or double row vertical installation within 120 batteries.
Mostly used in Solar PV Station with Single Axis Tracking System, FD08M is good for single or double row vertical installation within 120 batteries.
Ratio：80.84
Output Torque：3.5 KNm
Holding Torque：28.5 KNm
Radial Rating：105 KN
Ambient Temperature：-35～65℃
Anticorrosion Grade：C3-H
Protection Grade：IP65
Mechanical Stroke：±60 °
Precision Grade：≤0.2 °
