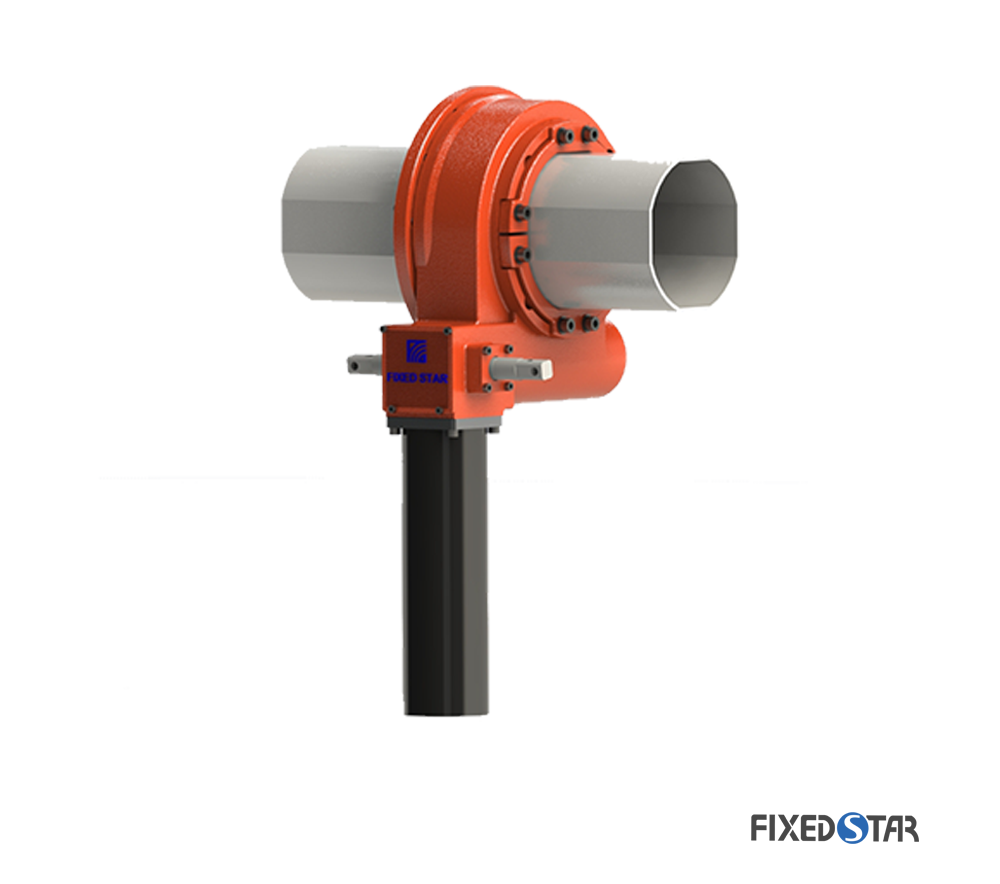

FD08Q Slewing Drive

Designed for conventional single shaft vertical layout, the transmission shaft is under the main beam. Good for non-tilting racking system with double row vertical installation upto 120 batteries.

Ratio：78.31
Output Torque：4 KNm
Holding Torque：40 KNm
Radial Rating：105 KN
Ambient Temperature：-35～65℃
Anticorrosion Grade：C3-H
Protection Grade：IP65
Mechanical Stroke：±60 °
Precision Grade：≤0.2 °
